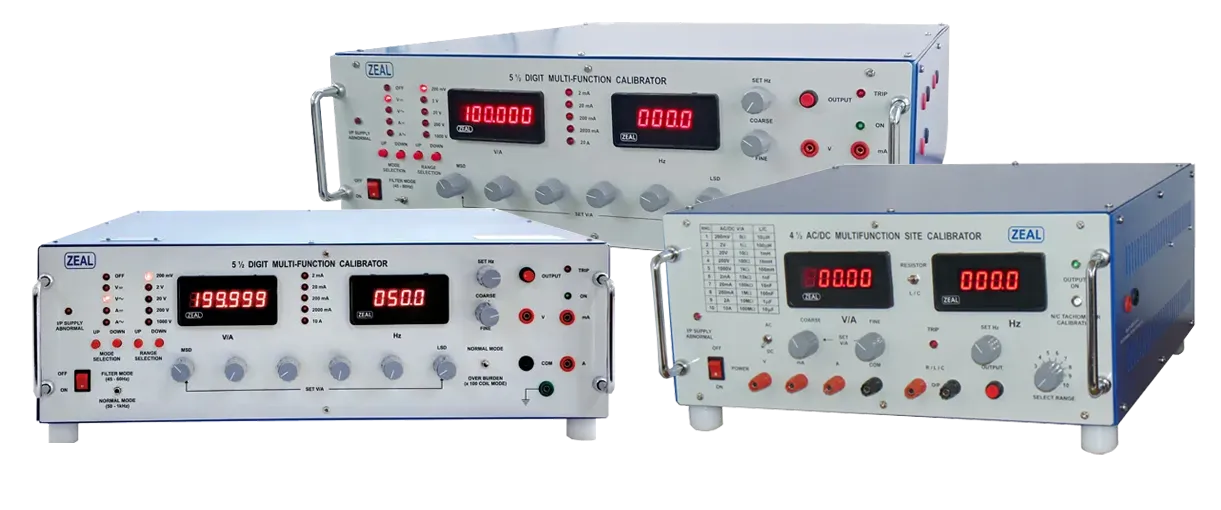

Multi Function Calibrators (Multiproduct Calibrators) / Voltage and Current Standards

We are Manufacturer, Supplier, Exporter of Multi Function Calibrators (Multi Product Calibrators) / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

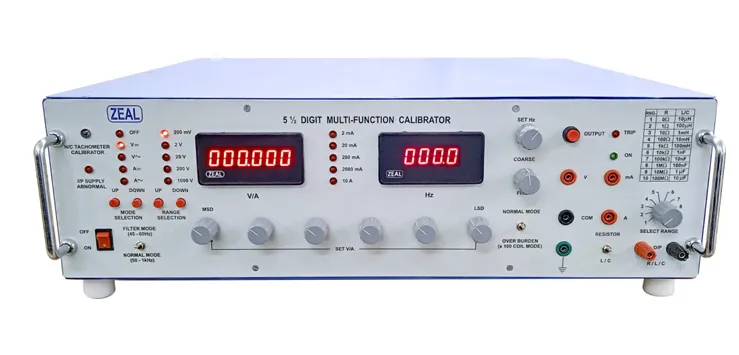

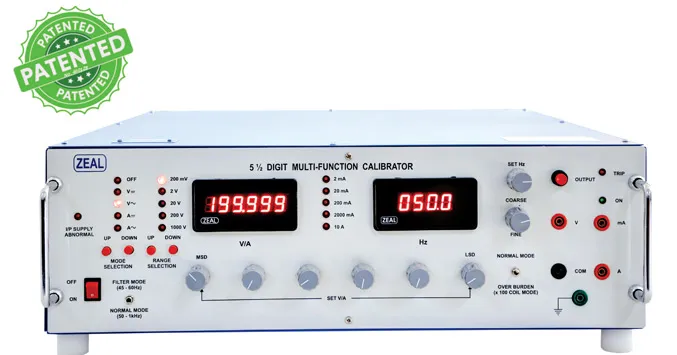

ZMMFC 5.5 (5½) Digit Multi Function <br> Calibrators

5.5 (5½) Digit Multi Function Calibrators

We are Manufacturer, Supplier, Exporter of 5.5 (5½) Digit Multi Function Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

The Multi-Function Calibrator is useful for the calibration of Digital Multimeters, Clamp Meters, Digital Panel Meters, and Analog Panel Meters. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, and AC Current. It has been designed to cover the calibration of maximum ranges of a variety of models of Multi meters available in the market.

The calibrator gives output, which is very stable. Stability is suitable enough to calibrate 4^1/2 and 4^3/4 DMM and Clamp-on Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 5^1/2 DMM. Calibrator has a micro controller unit, which handles all the parameter selection and range selection logic. Micro controller drives to the set of relays as per the logic program.

Technical Specification

Specification	Details
Model	ZMMFC 5.5
Input Power Supply	230V AC, ±5 % @ 50Hz.
Voltage Range	AC : 200mV, 2V, 20V, 200V, 1000V (45Hz to 1000Hz)
Voltage Range	DC : 200mV, 2V, 20V, 200V, 1000V
Current Range	AC : 2mA,20mA,200mA,2A,10A (45Hz to 1000Hz)
Current Range	DC : 2mA, 20mA, 200mA, 2A, 10A
Accuracy	AC Voltage : ±0.15%	DC Voltage : ±0.10%
Accuracy	AC Current : ±0.15%	DC Current : ±0.10%
Input Protection	Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
Operating Temperature	10^oC to 40^oC
Power OFF Storage Temperature	5^oC to 70^oC
Required Earth to Neutral Voltage	Less than 1V AC
Drift due to ageing	50 PPM per year.
Short term stability of the set value	350 PPM
Extra O/P Port	200mV AC/DC for calibration/Testing of Analog meter
Display	5½ Digit 7 segment red LED display for Voltage & Current
Display	4 Digit 7 segment red LED display for Frequency
Selection of AC/DC Parameters	By up and down keys and bar of LED to indicate selected parameter
Selection of Ranges	By up and down keys and bar of LED to indicate select range
Setting of Voltage & Current	By decade switch
Setting of Frequency	By multi turn potentiometer
Frequency Range Selection	By Toggle Switch for Normal Mode: 45 to 1 kHz. & Filter Mode: 50 to 60Hz provided at front side.
Dimension	550mm(W) X 550mm(D) X 170mm(H)
Weight	25kg. (Approx.)

Note : Accuracies specified at 25 deg C, RH 75%, basic accuracy ±10 digits for DC parameters & basic accuracy ±15 digits for AC parameters.

ZMSMFC 4.5 (4 ½) AC / DC <br>Multi Function Site Calibrators

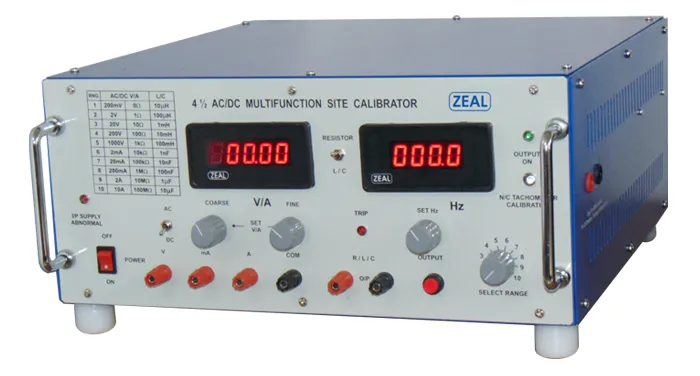

4.5 (4 ½) AC / DC Multi Function Site Calibrators

We are Manufacturer, Supplier, Exporter of 4.5 (4 ½) AC DC Multi Function Site Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Multifunction Calibrator is useful for the calibration of Digital Multi Meters, Clamp Meters, Digital Panel Meters, Analog Panel Meters, LCR Meters, and Non-Contact Type Tachometers. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Resistance, Capacitance, Inductance & RPM (Non-Contact Type). It has been designed to cover the calibration of maximum ranges of a variety of models of Multi meters available in the market. The calibrator gives output, which is very stable. Stability is suitable enough to calibrate 3^1/2 and 3^3/4 DMMs and Clampon Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 4^1/2 DMM.

Technical Specification

Specification	Details
Model	ZMSMFC 4.5
Input Power Supply	230V AC, ±5 % @ 50Hz.
Input Protection	Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
DC Voltage Ranges	200mV, 2V, 20V, 200V, 1000V
AC Voltage (45Hz to 1000Hz) Ranges	200mV, 2V, 20V, 200V, 1000V
DC Current Ranges	2mA, 20mA, 200mA, 2A, 10A
AC Current (45Hz to 1000Hz) Ranges	2mA, 20mA, 200mA, 2A, 10A
Frequency	45Hz to 1000Hz
Fixed Resistance	1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ
Fixed Inductance	10µH, 100µH, 1mH, 10mH, 100mH
Fixed Capacitance	1nF, 10nF, 100nF, 1µF, 10µF
RPM (Non Contact Type)	60,000 RPM
Display	4½ Digit 7 segment red LED display for Voltage & Current
Display	4 Digit 7 segment red LED display for Frequency
Accuracy @ 15^oC to 30^oC, RH <75%	AC Voltage: 0.3% ±10 Dgt	DC Voltage: 0.2% ±5 Dgt		Frequency: ±0.1 Hz
	AC Current: 0.3% ±10 Dgt	DC Current: 0.2% ±5 Dgt
	Resistance: 0.5%	Capacitance: ±5%		Inductance: ±5%
	RPM (Non Contact Type): ±0.1%, ±5 digit
Selection of AC/DC Parameters	By Toggle switch
Selection of Resistor / L / C	By Toggle switch
Selection of Ranges	By rotary selector switch
Setting of Frequency	By multi turn potentiometer
Operating Temperature	10^oC to 40^oC
Power OFF Storage Temperature	5^oC to 70^oC
Dimension & Weight	400mm(W) X 400mm(D) X 170mm(H)		20kg. (Approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality

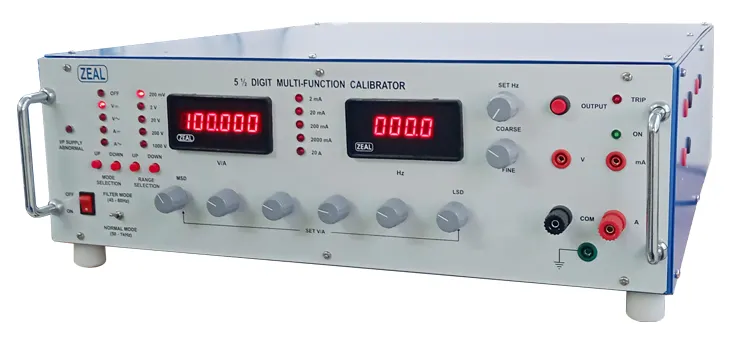

5.5.1 (5½) Digit Multi Function Calibrators

We are Manufacturer, Supplier, Exporter of 5.5.1 (5½) Digit Multi Function Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

The Multi Function Calibrator is useful for the calibration of Digital Multimeters, Clamp Meters, Digital Panel Meters, and Analog Panel Meters. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, and AC Current. It has been designed to cover the calibration of maximum ranges of a variety of models of Multi meters available in the market. The calibrator gives output, which is very stable. Stability is suitable enough to calibrate 4^1/2 and 4^3/4 DMM and Clampon Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 5^1/2 DMM. Calibrator has a micro controller unit, which handles all the parameter selection and range selection logic. Micro controller drives to the set of relays as per the logic program. Relays rout the outputs.

Technical Specification

Specification	Details
Model	ZMMFC 5.5.1
Input Power Supply	230V AC @ 50Hz.
Input Protection	Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
DC Voltage Ranges	200mV, 2V, 20V, 200V, 1000V
AC Voltage (45Hz to 1000Hz) Ranges	200mV, 2V, 20V, 200V, 1000V
DC Current Ranges	2mA, 20mA, 200mA, 2000mA, 20A
AC Current (45Hz to 1000Hz) Ranges	2mA, 20mA, 200mA, 2000mA, 20A
Frequency Range	45Hz to 1000Hz
Accuracy @ 20^oC to 28^oC, RH <75%	AC Voltage: 0.15% ±15 Digit	DC Voltage: 0.1% ±5 Digit		Frequency: ±0.1 Hz
Accuracy @ 20^oC to 28^oC, RH <75%	AC Current: 0.2% ±15 Digit	DC Current: 0.2% ±5 Digit
Operating Temperature	10^oC to 40^oC
Power OFF Storage Temperature	5^oC to 70^oC
Required Earth to Neutral	Less than 1 V AC
Drift due to ageing	50 PPM per year.
Short term stability of the set value	350 PPM
Display	5½ Digit 7 segment red LED display for Voltage & Current
Display	4 Digit 7 segment red LED display for Frequency
Selection of AC/DC Parameters	By up and down keys and bar of LED to indicate selected parameter
Selection of Ranges	By up and down keys and bar of LED to indicate selected range
Setting of Voltage & Current	By decade switch
Setting of Frequency	By multi turn potentiometer
Dimension & Weight	550mm(W) X 600mm(D) X 170mm(H)		32kg. (Approx.)

Note : Accuracies specified at 25 deg C, RH <75%, basic accuracy ±10 digits for DC parameters & basic accuracy ±15 digits for AC parameters.

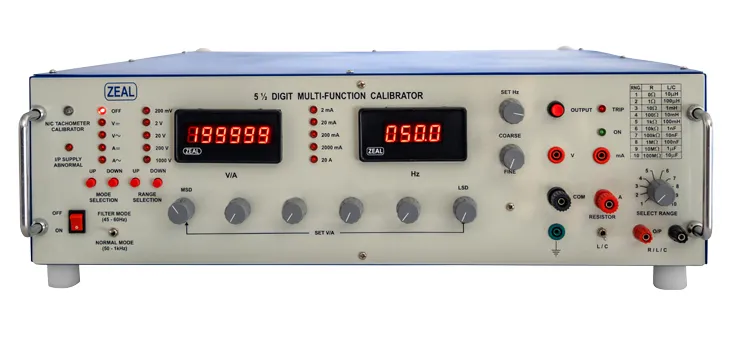

5.5.2 (5½) Digit Multi Function Calibrators

We are Manufacturer, Supplier, Exporter of 5.5.2 (5½) Digit Multi Function Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

The Multi Function Calibrator is useful for the calibration of Digital Multimeters, Clamp Meters, Digital Panel Meters, Analog Panel Meters and Tachometers. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, and AC Current. It has been designed to cover the calibration of maximum ranges of a variety of models of Multi meters available in the market.

The calibrator gives output, which is very stable. Stability is suitable enough to calibrate 4^1/2 and 4^3/4 DMM and Clampon Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 5^1/2 DMM. Calibrator has a micro controller unit, which handles all the parameter selection and range selection logic. Micro controller drives to the set of relays as per the logic program. Relays rout the outputs

Technical Specification

Specification	Details
Input Power Supply	230V AC @ 50Hz.
Input Protection	Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
DC Voltage Ranges	200mV, 2V, 20V, 200V, 1000V
AC Voltage (45Hz to 1000Hz) Ranges	200mV, 2V, 20V, 200V, 1000V
DC Current Ranges	2mA, 20mA, 200mA, 2000mA, 10A
AC Current (45Hz to 1000Hz) Ranges	2mA, 20mA, 200mA, 2000mA, 10A
Frequency Range	45Hz to 1000Hz
Fixed Resistance	1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10Ω, 100MΩ
Fixed Inductance	10µH, 100µH, 1mH, 10mH, 100mH
Fixed Capacitance	1nF, 10nF, 100nF, 1µF, 10µH
RPM Range (Non-Contact Type)	2700 to 60000 RPM
Accuracy @ 20^oC to 28^oC, RH <75%	AC Voltage: ±0.15 % of reading ±15 digit	DC Voltage: ±0.1 % of reading ±5 digit
	AC Current: ±0.15 % of reading ±15 digit	DC Current: ±0.1 % of reading ±5 digit
	Frequency: ±0.1 Hz	Resistance: ±0.2 %
	Inductance: ±2%	Capacitance: ±2 %
	RPM (Non Contact Type): ±0.1 % of Reading ±5 Digit
Operating Temperature	15^oC to 50^oC
Power OFF Storage Temperature	10^oC to 70^oC
Required Earth to Neutral	Less than 1 V AC
Drift due to ageing	50 PPM per year.
Short term stability of the set value	350 PPM
Display	5½ Digit 7 segment red LED display for Voltage & Current
Display	4 Digit 7 segment red LED display for Frequency
Selection of AC/DC Parameters	By up and down keys and bar of LED to indicate selected parameter
Selection of Ranges	By up and down keys and bar of LED to indicate selected range
Setting of Voltage & Current	By decade switch
Setting of Frequency	By multi turn potentiometer
Frequency Range Selection	By Toggle Switch for Normal Mode: 45 to 1 kHz & Filter Mode: 50 to 60 Hz provided at front side.
Resistor mode & Inductance / Capacitance mode Selection	By Toggle switch
R/L/C Range Selection	By Rotary switch
Dimension & Weight	600mm(W) X 550mm(D) X 175mm(H)	29kg. (Approx.)

ZMMFC 5.5.3 Digit <br>Multi Function Calibrators

5.5.3 (5½) Digit Multi Function Calibrators

We are Manufacturer, Supplier, Exporter of 5.5.3 (5½) Digit Multi Function Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

The Multi-Function Calibrator is useful for the calibration of Digital Multimeters, Clamp Meters, Digital Panel Meters, Analog Panel Meters, LCR Meters & Non-Contact Type Tachometers. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Resistance, Capacitance, Inductance & RPM (Non-Contact Type). It has been designed to calibrate the maximum ranges of a variety of models of multimeters available in the market. The calibrator gives very stable Output. Stability is suitable enough to calibrate 4^1/2 and 4^1/2 DMM and Clamp-on Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 5^1/2 DMM. Calibrator has a micro controller unit, which handles all the parameter selection and range selection logic. Micro controller drives to the set of relays as per the logic program. Relays rout the outputs.

Technical Specification

Specification	Details
Model	ZMMFC 5.5.3
Input Power Supply	230V AC ±5% @ 50Hz.
Input Protection	Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
DC Voltage Ranges	200mV, 2V, 20V, 200V, 1000V
AC Voltage (45Hz to 1000Hz) Ranges	200mV, 2V, 20V, 200V, 1000V
DC Current Ranges	2mA, 20mA, 200mA, 2000mA, 20A
AC Current (45Hz to 1000Hz) Ranges	2mA, 20mA, 200mA, 2000mA, 20A
Frequency Range	45Hz to 1000Hz
Fixed Resistance	1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10Ω, 100MΩ
Fixed Inductance	10µH, 100µH, 1mH, 10mH, 100mH
Fixed Capacitance	1nF, 10nF, 100nF, 1µF, 10µF
RPM Range (Non-Contact Type)	2700 to 60000 RPM
Accuracy @ 20^oC to 28^oC, RH <75%	AC Voltage: ±0.15 % of reading ±15 digit	DC Voltage: ±0.1 % of reading ±5 digit
	AC Current: ±0.15 % of reading ±15 digit	DC Current: ±0.1 % of reading ±5 digit
	Frequency: ±0.1 Hz	Resistance: ±0.2 %
	Inductance: ±2%	Capacitance: ±2 %
	RPM (Non Contact Type): ±0.1 % of Reading ±5 Digit
Operating Temperature	15^oC to 50^oC
Power OFF Storage Temperature	10^oC to 70^oC
Required Earth to Neutral	Less than 1 V AC
Drift due to ageing	50 PPM per year.
Short term stability of the set value	350 PPM
Display	5½ Digit 7 segment red LED display for Voltage & Current
Display	4 Digit 7 segment red LED display for Frequency
Selection of AC/DC Parameters	By up and down keys and bar of LED to indicate selected parameter
Selection of Ranges	By up and down keys and bar of LED to indicate selected range
Setting of Voltage & Current	By decade switch
Setting of Frequency	By multi turn potentiometer
Frequency Range Selection	By Toggle Switch for Normal Mode: 45 to 1 kHz & Filter Mode: 50 to 60 Hz provided at front side.
Resistor mode & Inductance / Capacitance mode Selection	By Toggle switch
R/L/C Range Selection	By Rotary switch
Dimension & Weight	600mm(W) X 600mm(D) X 170mm(H)	33kg. (Approx.)

About Company

Zeal Manufacturing & Calibration Services Pvt. Ltd.

Zeal Manufacturing & Calibration Services Pvt. Ltd. Company, which is an ISO 9001:2015 certified company engaged in manufacturing & exporting of Electronics Testing & Measuring Instruments, and also Calibration Standards for Electro Technical Parameters. Range of products includes Calibrators, Power Sources, Testers and Meters.

The company is pioneer in manufacturing of Electro Technical Calibration Standards e.g. Multifunction Calibrator, Three Phase Power Energy Meter Calibrator etc. in India, Calibrators have been supplied to Calibration Laboratories, Testing Laboratories in Govt / semi Govt / Private / Multinational organizations in India and abroad. Company manufactures testers like AC & DC High Voltage Breakdown Testers, Insulation Resistance Testers, Ground Continuity Testers etc. Company manufactures Power Sources like DC Regulated Power Supplies, Variable Frequency Sources, DC High Current Sources and AC High Current Sources. Company also undertakes manufacturing of customized test equipment.

Entire range of equipment have been appreciated by customers in India and abroad for their features such as Reliability, Precision and Accuracy. Hence, these equipments are being used in various industry segments such as Transformer, UPS, Control Panel Manufacturers, Calibration & Testing Laboratories, educational institutes etc.

Vision

To be a globally recognized organization that provides best electronic test and measuring solutions developed by best-in-class people.

Mission

To achieve our vision through fairness, business ethics, global reach, technological expertise, building long term relationship with all our associates, customers, partners and employees.

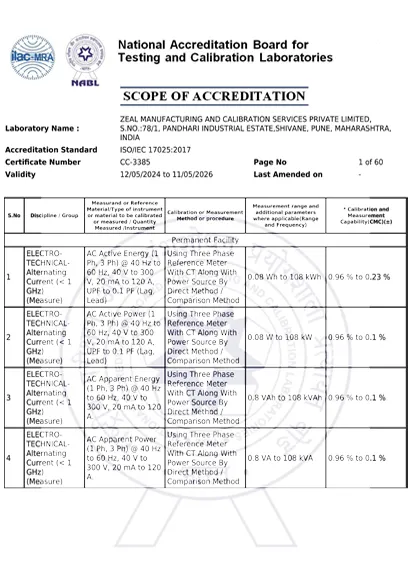

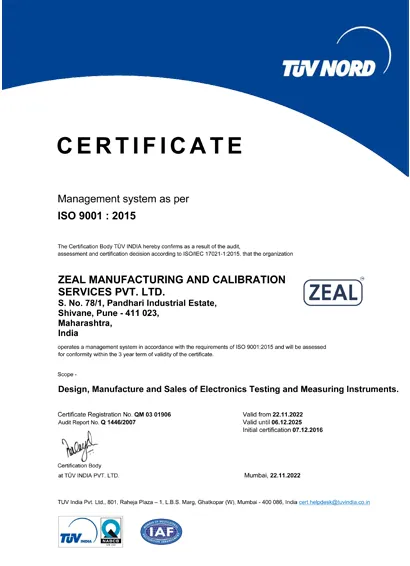

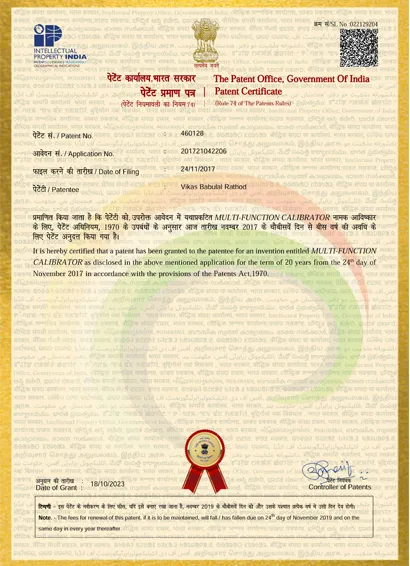

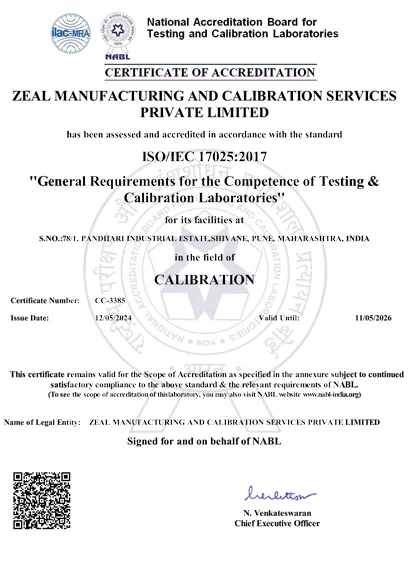

Certificates
